Home Products5 Gallon Bottle Filling Machine600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device
600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device supplier
600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device 600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device supplier 600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device supplier 600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device supplier 600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device supplier 600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device supplier
Contact Now

600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device

Minimum Order Quantity : 1 set Price : 18676USD
Packaging Details : wooden case Delivery Time : 15-20 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20 sets/month
Place of Origin: ZhangJiaGang JiangSu China Brand Name: FILL PACK
Certification: CE, ISO9001 Model Number: QGF-600

Detail Information
Control: PLC Filling Heads: 4
Volume: 18.9 Power: 6.5/15.55
Material: Stainless Steel 304 Barrel Size: 270*490mm
Automatic Grade: Automatic Gas Consumption: 1m3/min
Gas Pressure: 0.6Mpa Rated Voltage: 380V/50HZ
Highlight:

18.9 liter drinking water filling machine

,

SS304 18.9 liter Water Filling Machine

,

450BPH 18.9L Water Filling Machine

Product Description

600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device




The whole 600BPH gallon water filling line includes Automatic De-capper, Rotary external washer, L type Washer/Filler/Capper, Heat Shrinking Machine, Checking Light



hot alkaline water washing Gallon water production equipmen/line/device with bottle holder
Items
Name of machine
Model
1.1
Automatic De-capper
BG-2
1.2
Brush Internal-External Bottle Washer
XT-4
1.3
Washer/Filler/Capper with auto bottle loading
WFC-600BPH
1.4
Heat Shrinking Machine
/
1.5
Checking Light
CL-1
1.6
Conveyor Belt with Motor
/

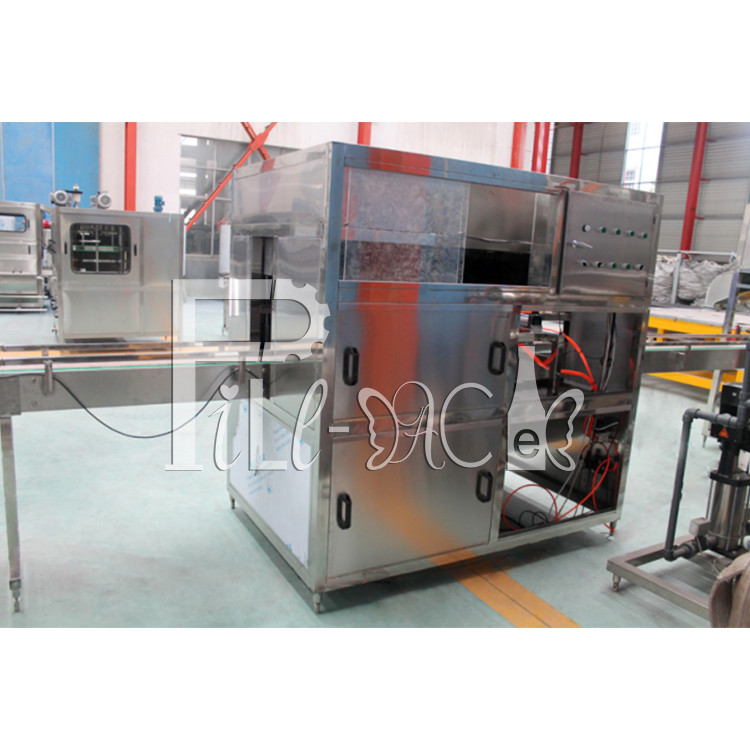

1, Automatic De-capper:

This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking; The
machine has two de-capping heads. De-capping head is composed by claw device and cylinder, de-capping
head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.
When the gallon bottle comes into the machine, the de-capping head will go down and claw device will
hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off,
the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;
The claw pressure is adjusted to protect caps;

De-capping head: 2 heads
Dimension: 900*600*2000mm
Weight: 130kg

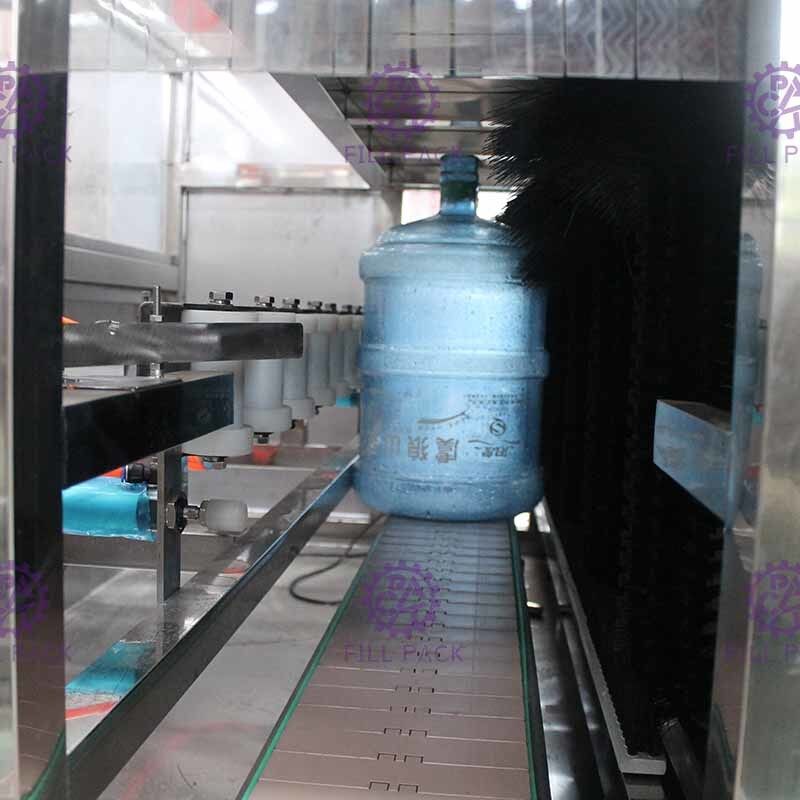

2, Rotary external washer

The machine is completely blocked to stop water leakage, when the gallon bottles are sent to washing
position, the cylinder will stop 4 bottles inside and fixed them by brushes and fixing bar, the water will be
pumped and jetted to bottle body, bottle rotates together with brushes; The bottles will be cleaned by
brushes and water function;
No air compressor needed, it is easy for production and maintenance;

Parameters:
Brush qty: 5pcs*2Dimension: 1500*1100*1750mm
Weight: 350KG
Power: 0.55KW
Recycle water tank size: 600*550*550mm

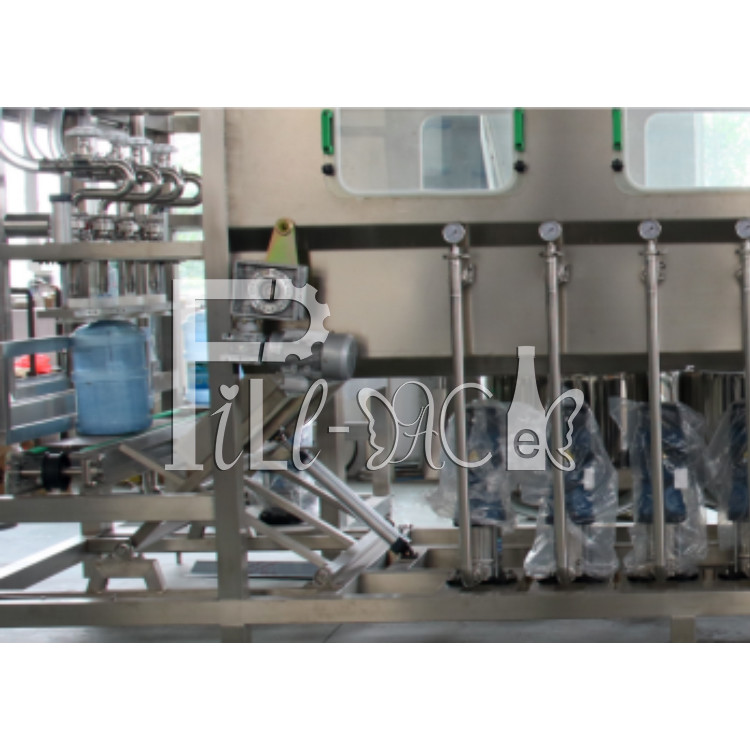

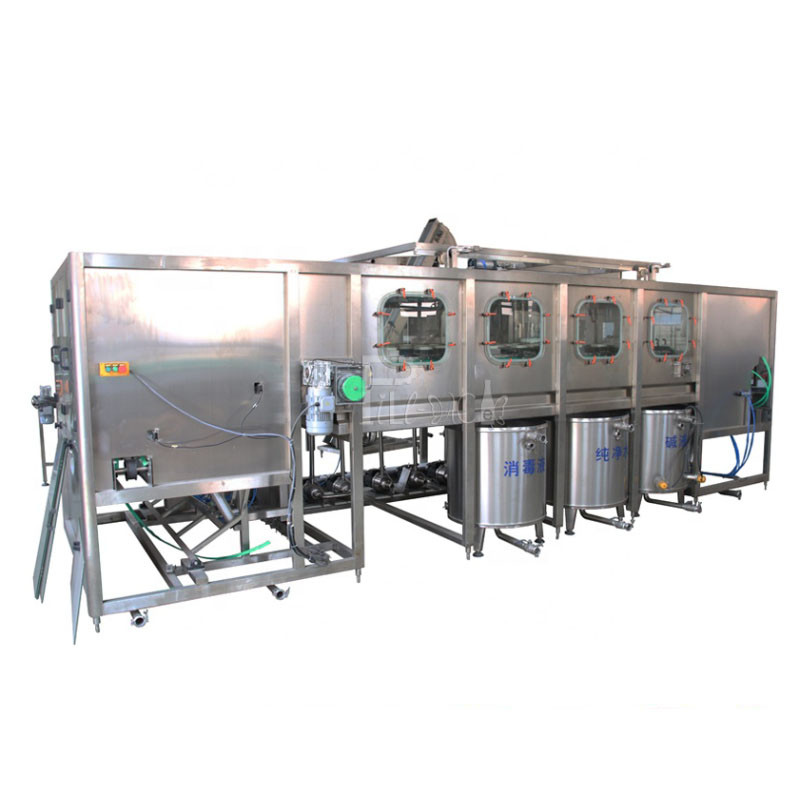

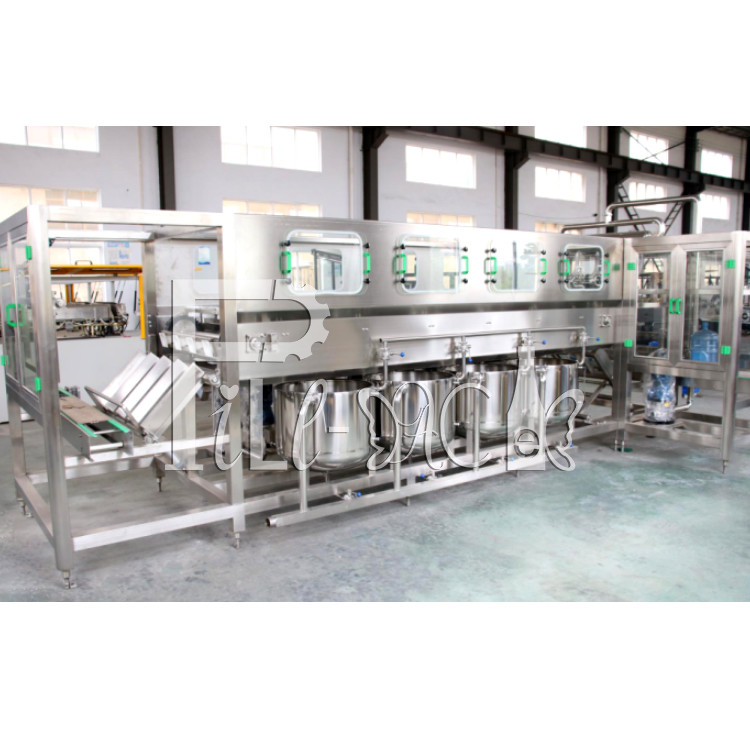

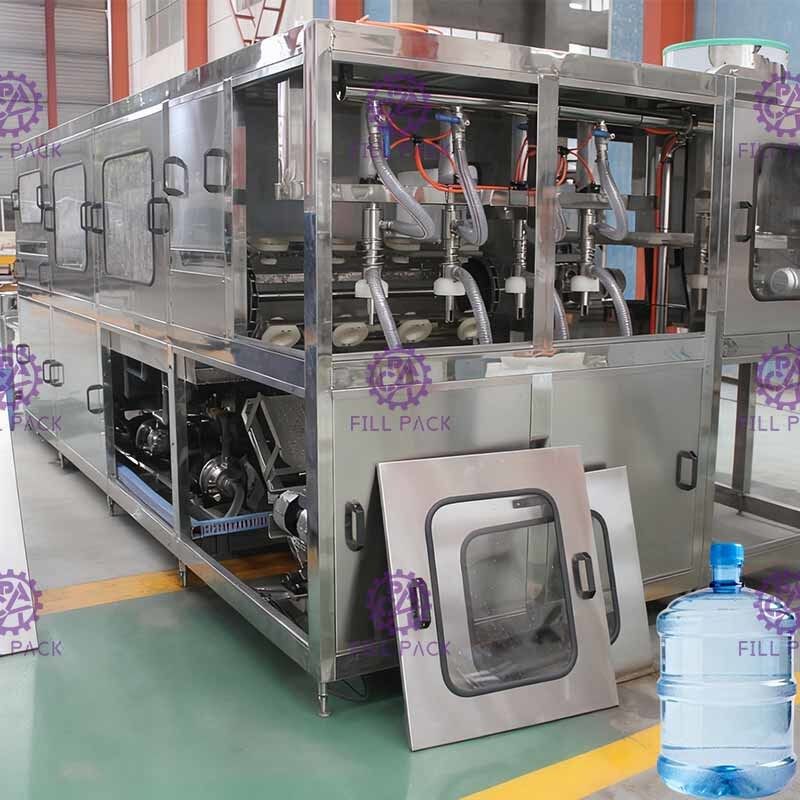

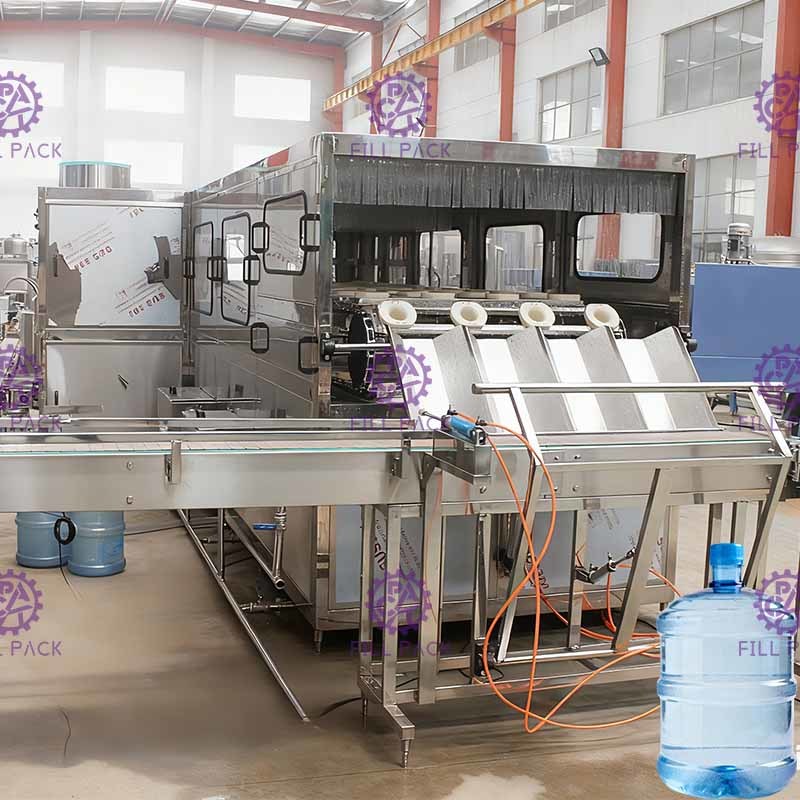

3, Monoblock gallon rinser-filler-capper



The machine is integrated washing filling and capping together. It is ideal machine to produce barrel
water. The whole machine is using stainless steel 202 shell, rust resistant, can be cleaned easily.Main
electric parts are all branded. Air channel system use Air TAC brand product.The machine is with compact
construction, just occupy small room, working efficiency is high. The machine only need 2 operators to
control, is a good choice for factory.
The machine set-up do not need plug floor screw, after case taking off, set the machine on the flat floor,
and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well,
get in through water pipe, drain pipe and power, air power.


4.Heat Shrinking Machine
Whole SUS304 construction, including electrical boiler to generate steam and shrink tunnel especially for
barrel cap film;
Power: 20KW
Dimension: 800*600*1200mm
Weight: 100kg


600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device 0



600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device 1600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device 2600BPH 5 gallon bottlel water filling machine Drinking bottled water production line device 3
