Touch Screen 60BPH Gallon Bottle Blowing Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
| Minimum Order Quantity : | 1 | Price : | 9600USD |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 15-20days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20 sets/month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-120 |
|
Detail Information |
|||
| Blow Moulding Type:: | Stretch Blow Moulding | Capacity:: | 150BPH |
|---|---|---|---|
| Voltage:: | 220-380-110V/50-60HZ/3phase | Weight: | 1600KG |
| Cavity: | Single Cavity | Name: | Gallon Bottle Blowing Machine |
| Dimension: | 2300*750*2100 Mm | Condition: | New |
| Highlight: | 150BPH Gallon Bottle Blowing Machine,150BPH bottle preform making machine |
||
Product Description

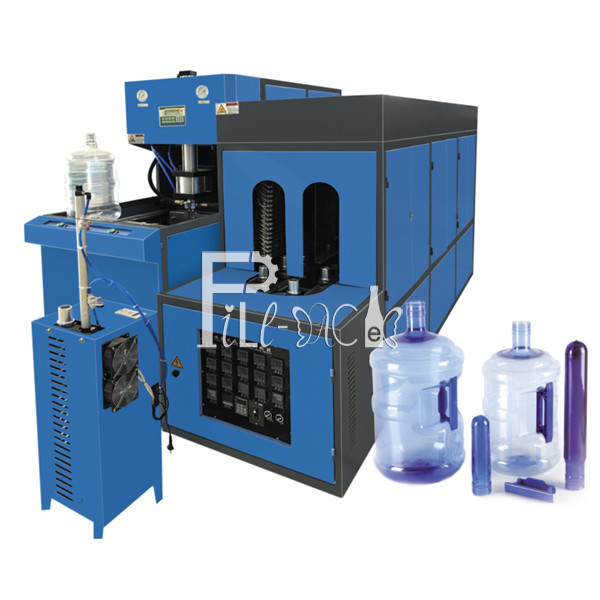

Semi auto 20L / 5 gallon bottle making machine with single cavity
5 gallon bottle making machine Specification:
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.

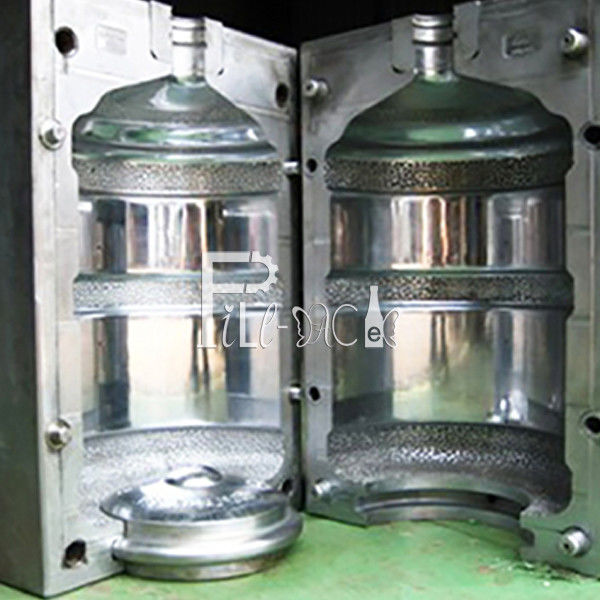

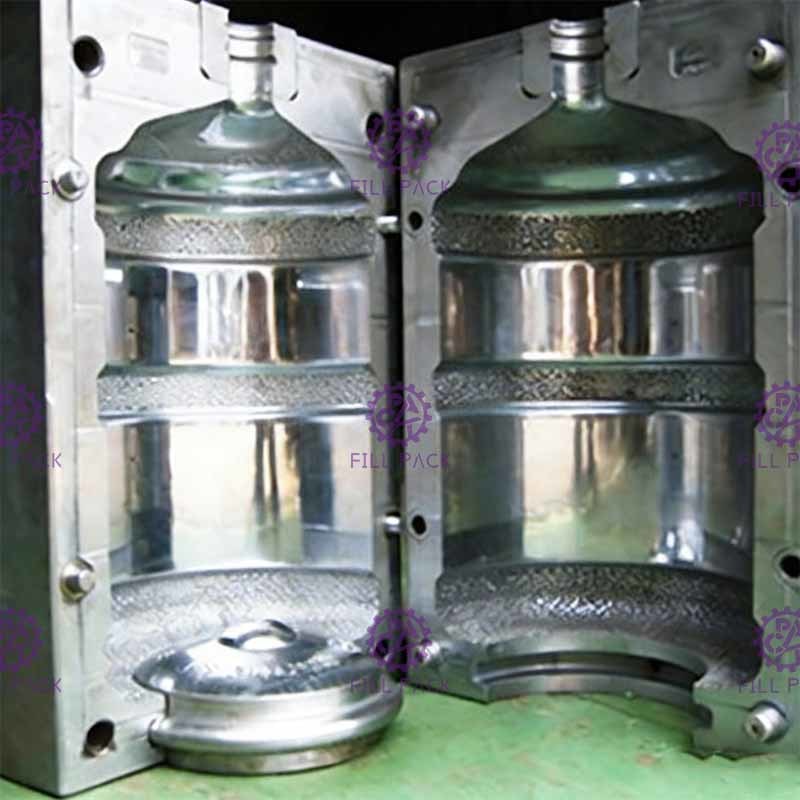

● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.
5 gallon bottle making machine Main Parameter:
|
Name
|
Item
|
Unit
|
Details
|
|
Blowing machine
|
Dimension
|
mm
|
2300*750*2100
|
|
Bottle volume (max)
|
L
|
22
|
|
|
Bottle volume (min)
|
L
|
5
|
|
|
Bottle Neck Diameter (max)
|
mm
|
90
|
|
|
Bottle Neck Diameter (min)
|
mm
|
38
|
|
|
Body Diameter (max)
|
mm
|
300
|
|
|
Body Height( max)
|
mm
|
550
|
|
|
Number of Cavities
|
mold
|
1
|
|
|
Production output
|
pcs/h
|
5GALLON:90-150PCS/HOUR
|
|
|
Clamping force
|
T
|
20(200KN)
|
|
|
Mold thickness
|
mm
|
450(max)
|
|
|
Mold width
|
mm
|
430x530
|
|
|

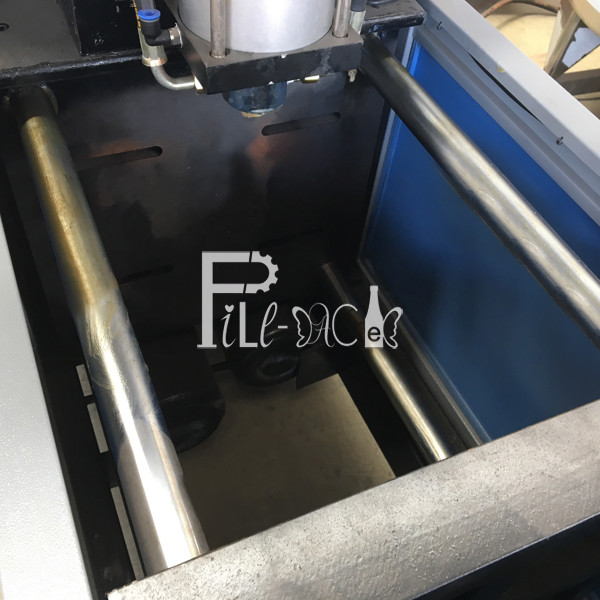

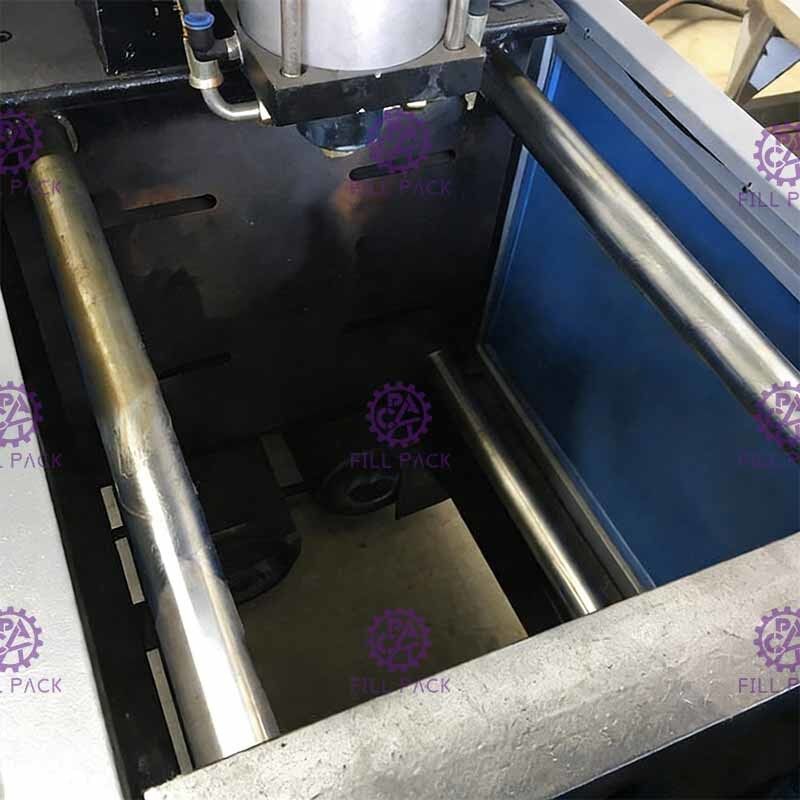

Space between Tie-bars
|
mm
|
430*470
|
|
|
Diameter of Tie-bars
|
mm
|
63
|
|
|
Scope of Tie-bars
|
mm
|
405
|
|
|
Mold stroke
|
mm
|
170
|
|
|
Stretching stroke (max)
|
mm
|
420
|
|
|
Working pressure
|
Mpa
|
0.8-1.0Mpa
|
|
|
Blowing pressure
|
Mpa
|
2.0-3.0Mpa
|
|
|
Voltage/Power
|
V/KW
|
220V/1KW
|
|
|
Pre-heater
|
Dimension
|
mm
|
2300*750*2100MM
|
|
Weight
|
kg
|
1600
|
|
|
Voltage/Power
|
V/KW
|
380V/28KW
|
|
|
|
Lamp
|
PCS
|
32
|
|
Working power
|
Kw
|
15kw
|

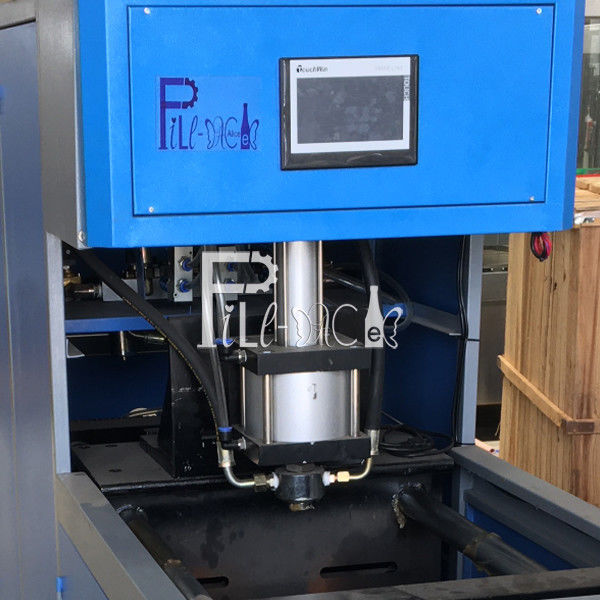

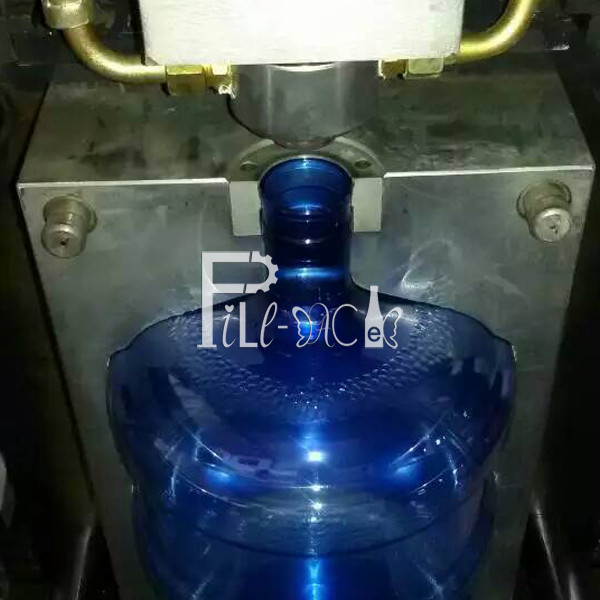

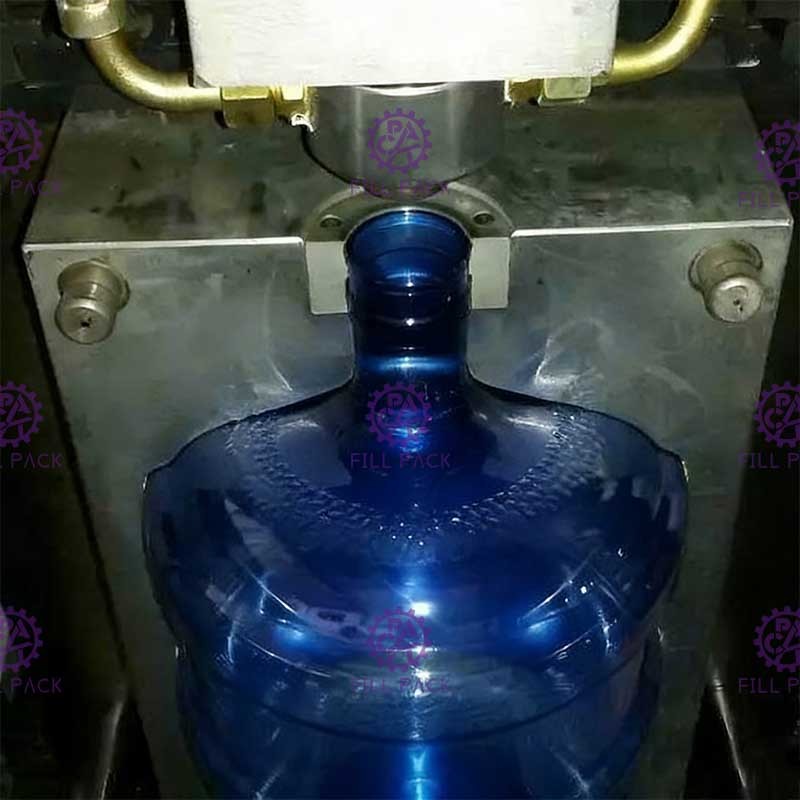

5 gallon bottle making machine Parts
Max. container volume:20L
Mould thickness:260-410mm
Max. container diamter:300mm
