20L Water 120BPH Gallon Bottle Blowing Machine

5 gallon bucket blowing machine Product Description:
suitable for producing PET plastic containers and bottles from 15L~20L.

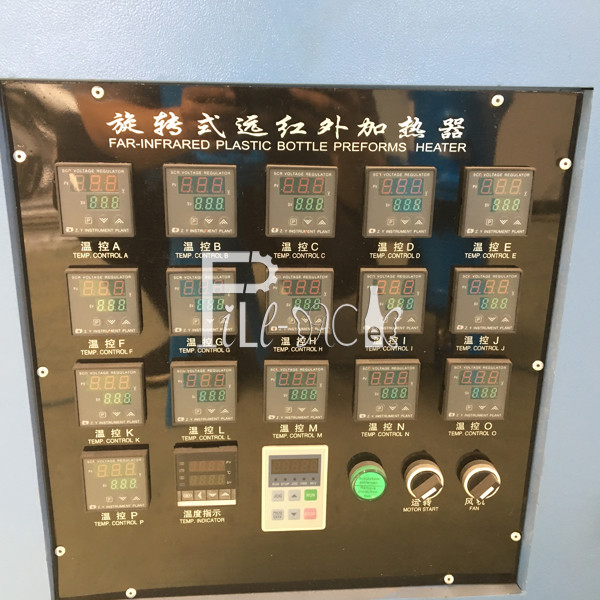

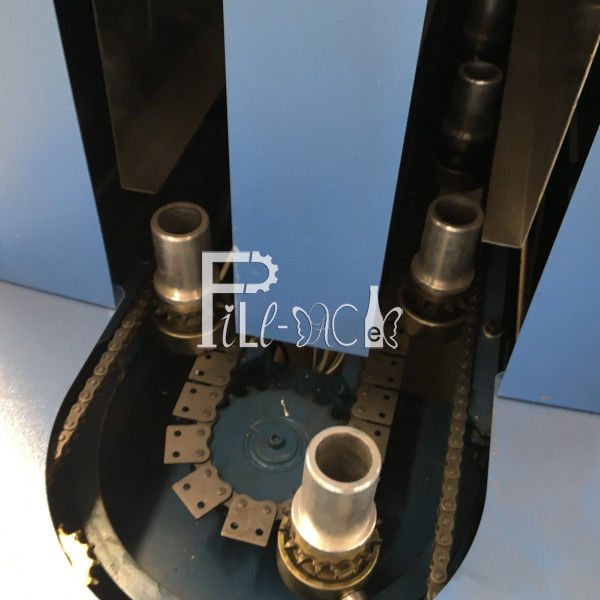

1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the preform , the preform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment,easy and safe to operate.



Type	Item	Unit	Parameter
	Suitable Product Material		PET
	Number of cavity	CAVITY	1
	Bottle Volume	L	20L
	Theoretical Output	BPH	120
	Max Container Height	MM	400
	Max Container Diameter	MM	130
	Max Mouth Diameter	MM	110
Mould	Max Mould Plate Dimention	PCS	L420xW640
	Max Mould Thickness	MM	400
	Clamping Force	KN	100
	Mould Opening Stroke	MM	380V/50Hz
Blower and Heater	Blower size(LxWxH)	CM	220x72x200
	Blower weight	KG	1500
	Blowing pressure	KG	20-30
	Acting pressure	KG	8-10
	Heater LxWxH	CM	270x65x165
	Heater Weight	KG	560
	Rate Capacity	PCS/MIN	18-25
	Preform Mouth	MM	55
	Voltage		380V/3Phases/50-60Hz
	Motor Power	KW	25
	Max Heating Power	KW	14

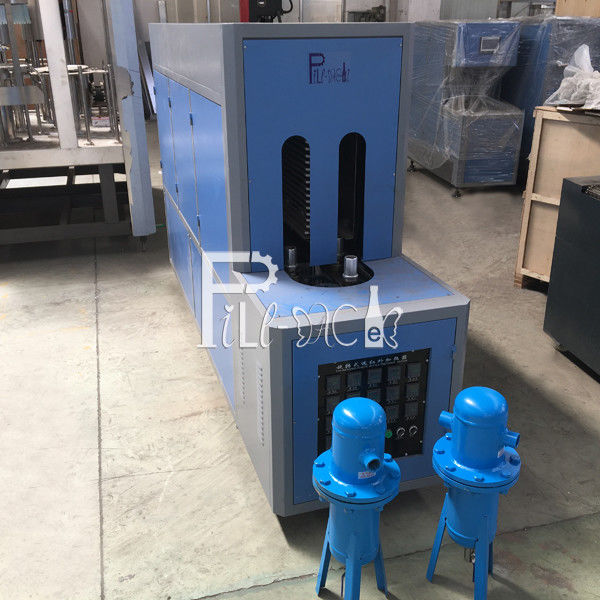

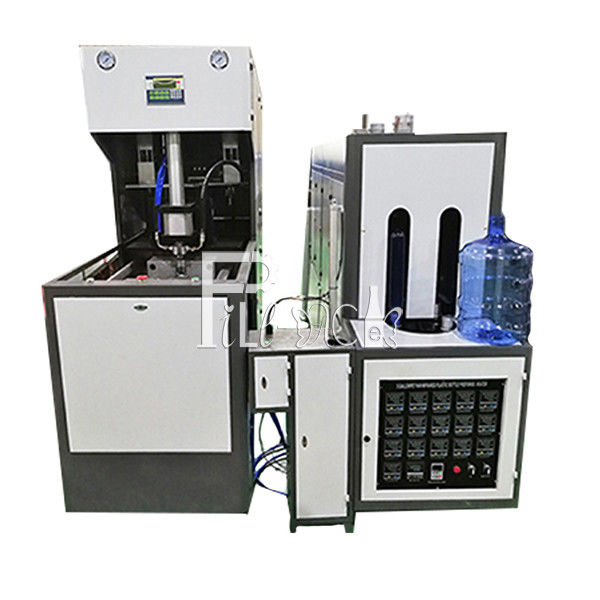

Machine Detail of 5 gallon bucket blowing machine
