Concave Convex Shape 3 In 1 20 Liter Jar Filling Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
| Minimum Order Quantity : | 1 set | Price : | USD $18,000-$20,000/set |
|---|---|---|---|
| Packaging Details : | wooden case | Delivery Time : | 15-20 working days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 5 sets/month |
| Place of Origin: | ZhangJiaGang JiangSu China | Brand Name: | FILL PACK |
|---|---|---|---|
| Certification: | CE, ISO9001 | Model Number: | QGF600 |
|
Detail Information |
|||
| Bottle Size: | 3~5 Gallon | Capacity: | 600BPH |
|---|---|---|---|
| Voltage: | 380/220/50-60hz/1-3phases | Condition: | New |
| Dimension(L*W*H): | 5000*2300*1800mm | Processing Types: | Normal Pressure Filling |
| Size Of Barrel: | ф276×490mm | Conveyor Mode: | Conveyor Belt |
| Highlight: | Φ270*490mm Barrel Filling Line,600BPH 20 ltr water jar filling machine,600BPH Gallon Filling Machine |
||
Product Description

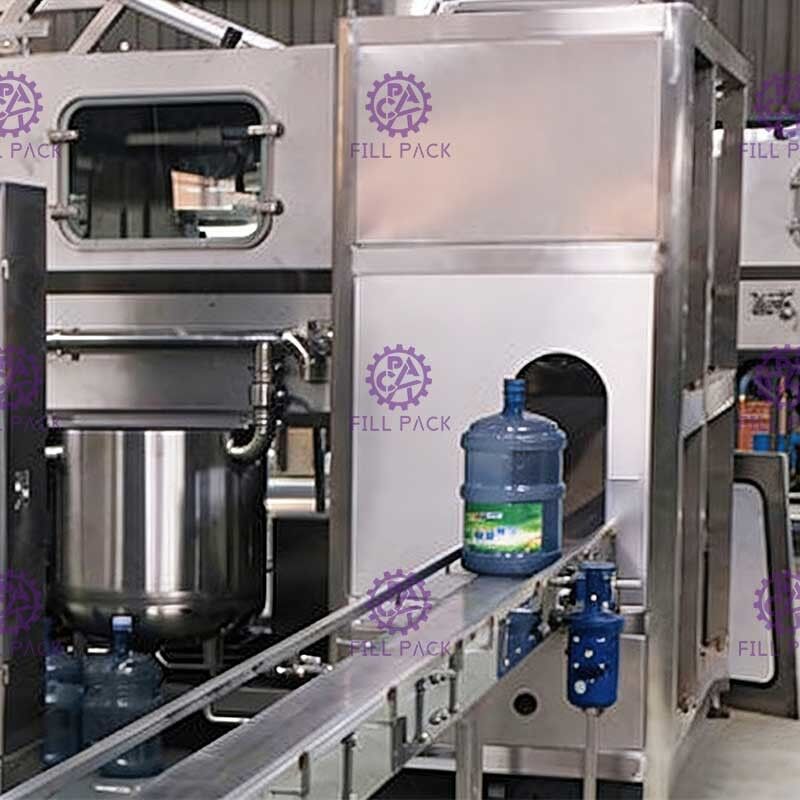

Description of 600BPH jar Water 5 Gallon bottling machine with de-capper and brush
This 5 Gallon bottling machine is made by stainless steel 304, it has auto washing, filling& capping in one body, with auto uploading barrrel, empty bottle conveying& full bottle conveying, the length can design according to the buyer's workshop.
Features of 5 Gallon bottling machine:
1). It is ideal equipment for producing mineral water, super-pure water,space water and distilled water.
2). Advanced PLC control system
3). The key parts are imported and their quality is reliable.
4). Barreled water production line machine is made of stainless steel.
5). Its structure is reasonable and its operation is convenient.
6). Easy cleaning and corrosion.
The parameters and specifications of 5 Gallon bottling machine:
|
Containers and Specifications
|
||||
|
Project Name:

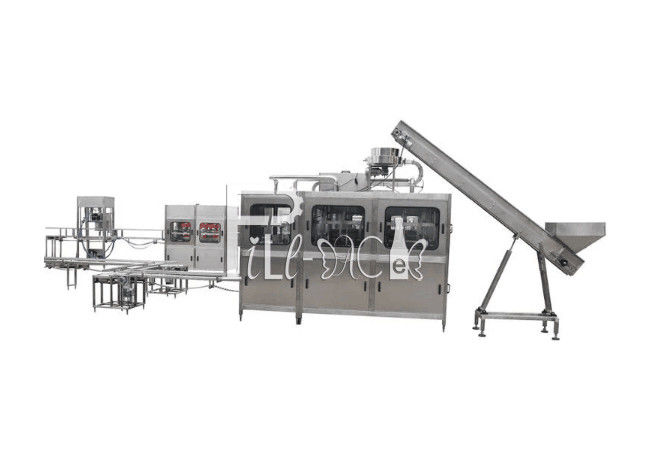

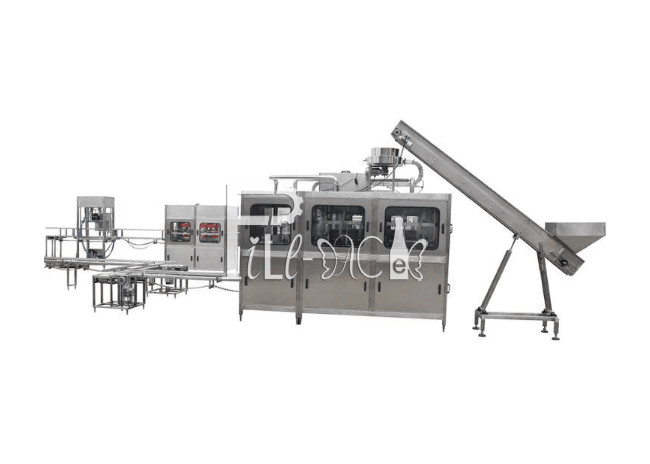

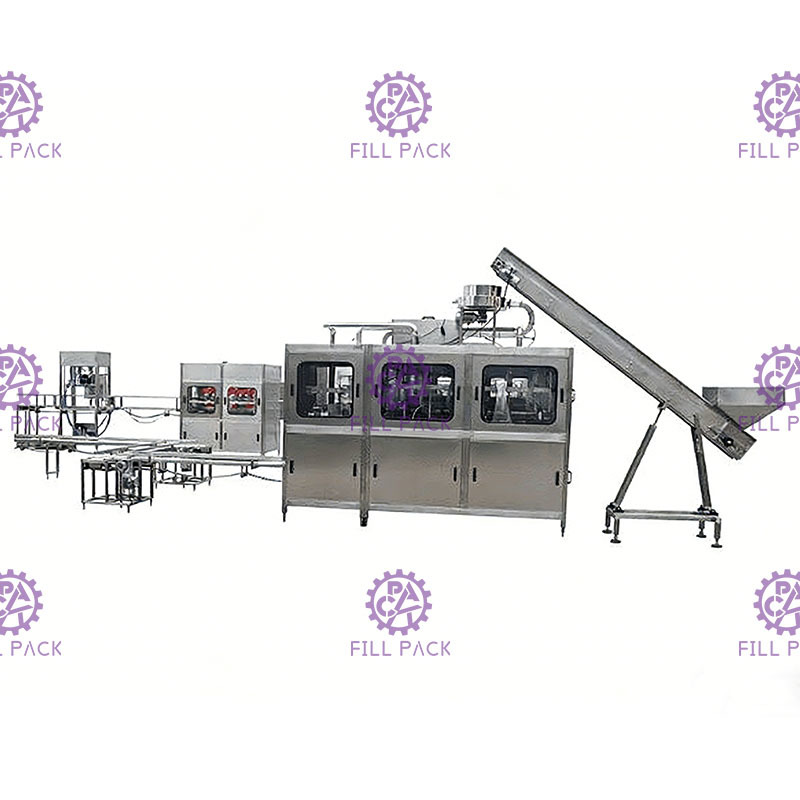

Full Automatic Complete 600BPH 3-5 Gallon Barrel Filling Production Line |
Mineral Water /
Pure Water |
|||
|
Material
|
Shape
|
Filling volume
|
Filling Type
|
Conveyor Mode
|
|
PC / PET
|
Round or Square
|
3 - 5 Gallon
|
Gravity filling
Normal temperature |
Conveyor belt
|
|
Adjustable Specifications
of Bottle Type |

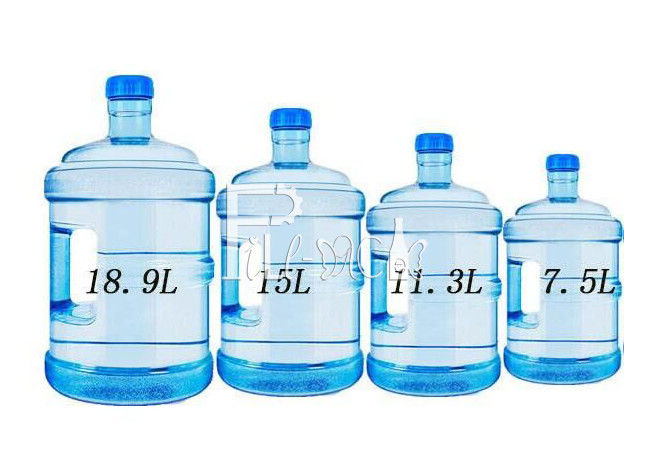

Size of Barrel : ф276×490mm
|
|||
|
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added. |
||||
Except the model 600BPH 5 Gallon bottling machine, we aslo have other capacities.
| Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
| Volume | 3&5 Gallon | ||||||
| Barrel size | Φ270*490mm | ||||||
| Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
| Air pressure(MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Air consumption(m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
3 SUS304 water tanks:
The beautiful window and 5 vertical pumps:
Warranty: 12 months
In the warranty period:
In order to provide customers improve and thoughtful service, eliminating the customer's worries. Our company has established a perfect after-sales service system and effective after-sales service measures, and through a dedicated hotline after-sales service to provide users with satisfactory answers to questions and technical support; and has a service department to conduct regular customer visits. The company currently has more than 10 professional service engineers as a strong after-sales service team, ask your service to provide protection. Our company to you to make subordinate repair service commitment, and in accordance with the requirements of the service commitment to provide you with maintenance services.
