Screw Neck 175 MPA Preform Injection Molding Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
| Minimum Order Quantity : | 1 | Price : | USD $54050/set |
|---|---|---|---|
| Packaging Details : | Wooden Case Package | Delivery Time : | 35-40 days after deposit receipt |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 1 set / month |
| Place of Origin: | China,JiangSu,Zhangjiagang | Brand Name: | FillPack |
|---|---|---|---|
| Certification: | CE. ISO9001 | Model Number: | FP-3850 |
|
Detail Information |
|||
| Warranty: | 1 Year | Max. Pump Pressure: | 16MPA |
|---|---|---|---|
| Injection Rate: | 320g/s | Hydraulic Oil Pump: | Taiwan-Hejduk |
| Space Between Tie-bars: | 680X680mm | Machine Type: | Hydraulic |
| Condition: | New | ||
| Highlight: | 16MPA PET Bottle Preform Making Machine,850KN PET preform injection machine |
||
Product Description

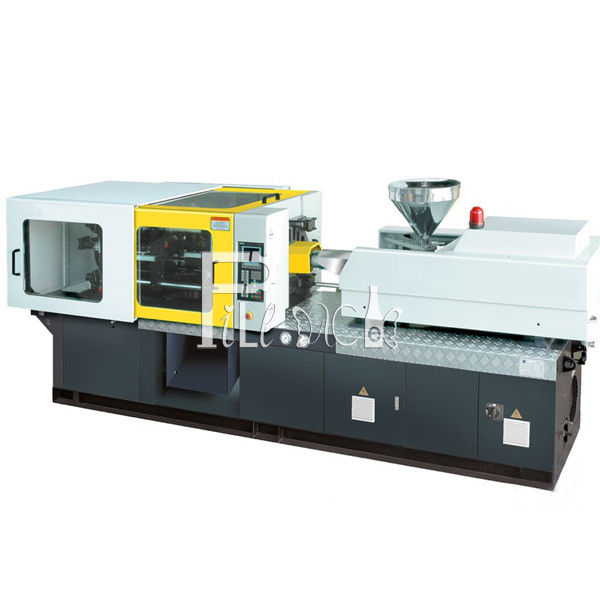

Blue colour PET Barrel preform making machine / equipment / device / system / plant with 3850KN Clamp tonnage
Product features:
Use closed-type gate hood, Barrel preform making machine can protect the mold clamping moving mechanism effectively.
Use five-points double toggle clamping system of the computer module optimal design, Barrel preform making machine have strong clamp force, running speed, stationary, reliability.
Mould platens optimized by limited element analyze, Barrel preform making machine use support spatial corridor casting structure,it greatly improve system rigidity.
Optimize rolling-oress system,aving a high-speed good performance injection system.
Use adjustable sliding feet device for injection molding module,easy for adjusting,reduce the wear-out degree on tie bar greatly.
Use high performance and the international brand electronic components that have the various functions man-machine interface dedicated controller have funcation and electric internation band, stability agility operation.
Hollow-casting and spherical-structure fixed platen,higher intensity,longer life.
Parameter:
|
MODEL |
3850A | ||
| INJECTION UNIT | A | B | |
| Screw diameter | mm | 63 | 65 |
| Shot size(theoretical) | Cm³ | 1120 | 1192 |
| Screw L/D ratio | L/D | 22.7 | 22 |
| Screw speed | r.p.m | 0-160 | |
| Nozzle Diameter | Srmm | 20 | |
| CLAMPING | |||
| Clamp tonnage | KN | 3850 | |
| Toggle stroke | mm | 660 | |
| Mould Thickness | mm | 280-680 | |
| Space between tie-bars | mm | 680X680 | |
| Ejector stroke | mm | 160 | |
| Recommended different preform moulds specifications based on standard gram | |||
| Moulds manterial | Cavity(Pcs) | Gram weight(g) | Capacity(pcs/hour) |
|
Option1:P20 outside, Main accessories S136
Option2: SUS 316 |
1 |
800 |
45 |
| 750 | |||
| 730 | |||
| 700 | |||
| 680 |
50 |
||
| 650 | |||
| 620 | |||
| 600 | |||
| 580 |
55 |
||
| 560 | |||
| 530 | |||
|
2 |
480 |
120 |
|
| 430 | |||
| 400 | |||
| 350 | |||
| 320 | |||
Spare parts list for host inject machine part:
| Item |
Free spare parts |
Price for additional spare parts/USD |
|
1, Heating band for barrel |
1pcs | $35 |
| 2, Heating band for nozzle | 1pcs | $26 |
| 3, Sealing rings | 1sets | $25 |
| 4, Solid-state relay | 1pcs | $15 |
| 5, Proximity switch | 2pcs | $12 |
| 6, thermocouple | 1pcs | $12 |
| 7, socket head wrench | 1sets | $16 |
| 8, Mold clip | 8pcs | $180 |
| 9, Level pad | 1pcs | $130 |
| 10, Socket & plug | 2pcs | $17 |
The matching for recommended auxiliaries devices:

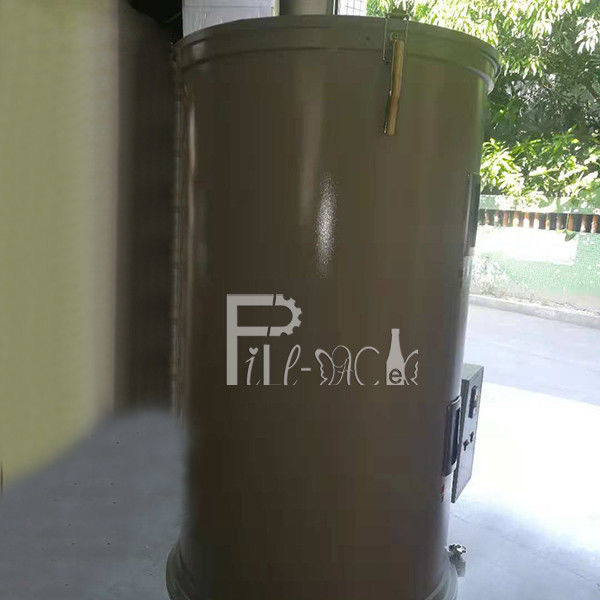

| Hopper Dryer | |
| Capacity | 100KG |
| Power for electrical heating | 6.5KW |
| Fan power | 215W |
| Fan flange | 150mm |
| Packing size | 1020*630*1080mm |
| Base installation size | 180*180*φ80mm |
| weight | 59KG |
Top hopper power connection for ref:

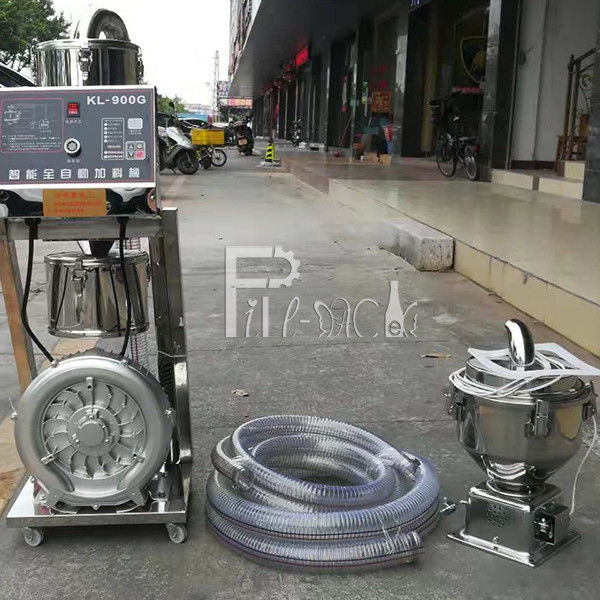

| Auto loader | |
| Capacity | 480KG/H |
| Lifting | 5m |
| Static wind pressure | 2400mm/H20 |
| Materials storage tank volume | 7.5L |
| Inner diameter of feeding tube | 38mm |
| Host machine size | 500*400*720mm |
| Materials storage tank size | 450*320*450mm |
| Host machine weight | 66KG |
| Materials storage tank weight | 7KG |
Loader gas pump:

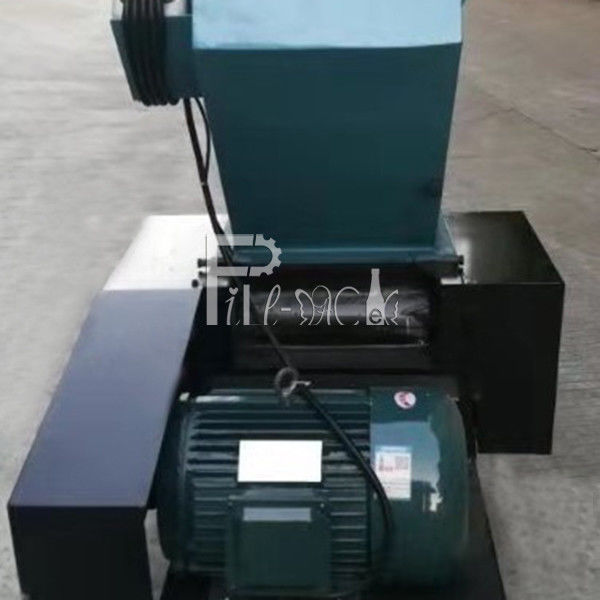

| Plastic crusher | |
| Motor power | 20HP(15KW) |
| Diameter | 610*320mm |
| Capacity | 600-800KG/H |
| fixed knife | 2pcs |
| Moving knife | 18pcs |
| dimension | 1200*1120*1630mm |
Crusher power connection for ref:
