8040 Membrane 8TPH Reverse Osmosis Water Treatment Machine
Contact Person : Alice Gu
Phone Number : 86-15862615333
WhatsAPP : +8615862615333
| Minimum Order Quantity : | 1 set/pcs | Price : | USD$17,000.00 |
|---|---|---|---|
| Packaging Details : | Wooden case pacakge | Delivery Time : | 20-25 days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 10 sets/month |
| Place of Origin: | ZhangJiaGang City, JiangSu Province, China | Brand Name: | FILLPACK |
|---|---|---|---|
| Certification: | CE,ISO | Model Number: | RO-6000 |
|
Detail Information |
|||
| Framework Material: | Stainless Steel 304 | Capacity: | 6000LPH |
|---|---|---|---|
| Application: | Drinking Water | Control: | PLC Control |
| Desalination Rate: | ≥97% | Thickness Of Material:: | 3.5mm |
| Filtered Water Conductivity:: | <10us/cm | ||
| Highlight: | 6000LPH RO treatment machine,PLC Control RO treatment machine system,6000LPH Reverse Osmosis purifier |
||
Product Description

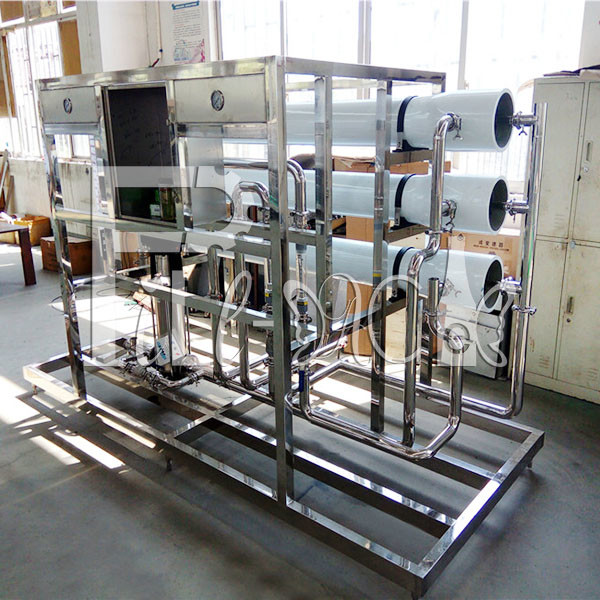

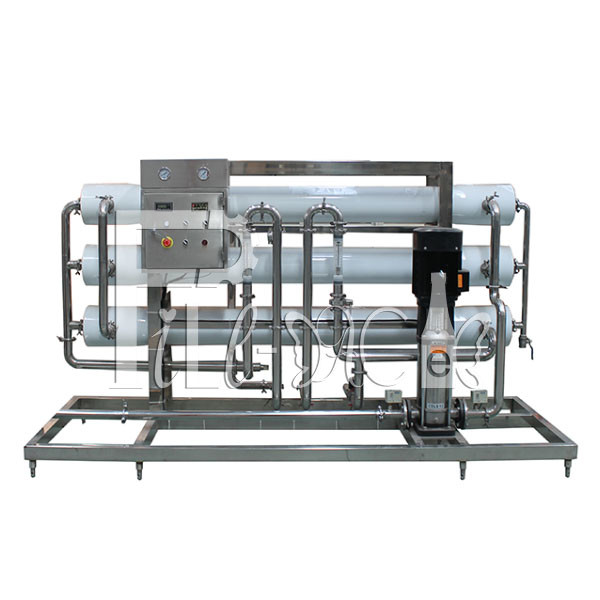

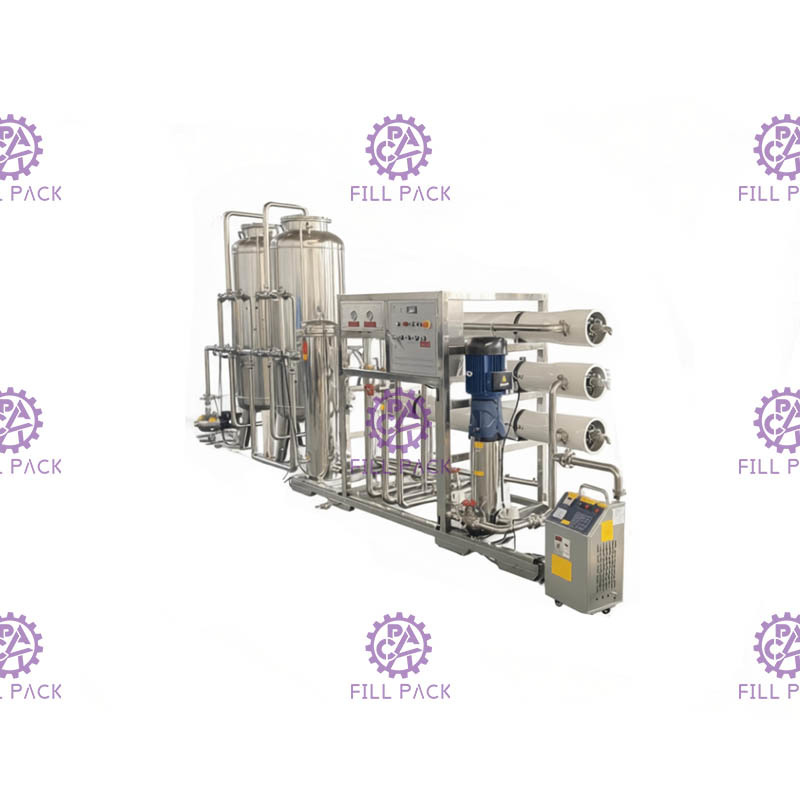

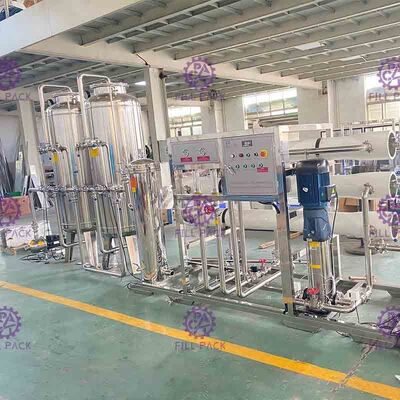

6000 LPH Pure mineral Drinking water RO Reverse Osmosis purifier treatment machine / system
Product Description of 10TPH RO Water Filtration System:
RO device is raw water after fine granular activated carbon filter, activated carbon filter filter, compression, again through the pump pressure can use aperture for 1/10,000 mu m (equivalent to escherichia coli size 1/6000, virus 1/3) reverse osmosis membrane (RO film), the relatively high concentrations of water into water, and will be low concentration of industrial pollutants, heavy metal, bacteria, viruses such as large intermingled with water impurities all segregation, achieve drinking provisions physiochemical index and hygiene standards, output to qing dynasty to pure water, it is human body moisture of seasonable compensatory quality of best choice. Because RO reverse osmosis technology production water is dramatically is currently humans master all the water making technology, cleanliness the tallest of almost 100%, so people say the water production machines for reverse osmosis pure water.
Features of 10TPH RO Water Filtration System:
1. We can design and produce the water treatment system according to customer’s raw water quality report or customer requirement with World health organization living instant-drinking water standard.
2. All the valves, pipeline will be with stainless steel SUS304 , with compact structure.
3. All the machine will be PLC controlled, can be operated automatically, and also have installed with conductivity meter monitor, pressure gauge and flow meter. All the parameter in the machine can be monitored easily.

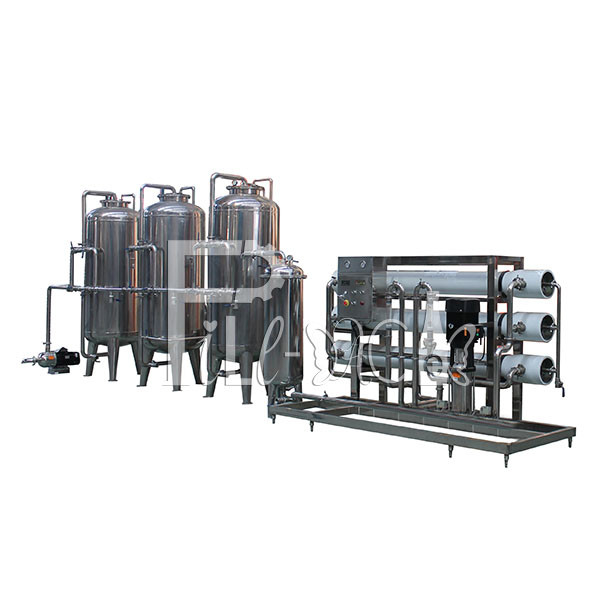

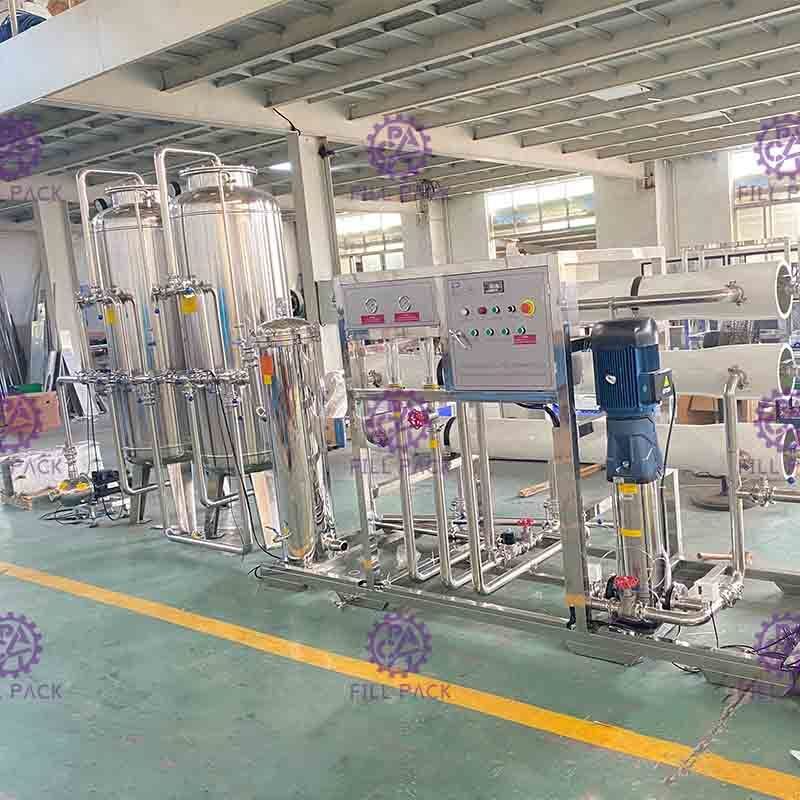

Process of 10TPH RO Water Filtration System:
|
S/N
|
Items
|
Function
|
Remark
|
|
1
|
Raw water tank
|
Store water, buffering pressure, overcome instability of supplying water by pipe
|
Customer provide for themselves
|
|
2
|
Raw water pump
|
Provide needed pressure for every pretreatment filter
|
CNP pumps or Grundfos pumps
|
|
3
|
Mechanical filter /quartz sand filter / sand filter
|
get rid of turbidity, suspended mater, organic matter, colloid ect.
|
fiber glass /stainless steel vessel
|
|
4
|
Activated carbon filter
|
remove color, free chloride, organic matter, harmful matter and so on.
|
fiber glass /stainless steel vessel
|
|
5
|
Security filter/ pp filter/ PP sediment filter
|
prevent large particles, bacteria, viruses into RO membrane
|
|
|
6
|
High pressure pump
|
provide high pressure to RO membrane(at least 2.0Mpa)
|
CNP pumps or Grundfos pumps
|
|
7
|

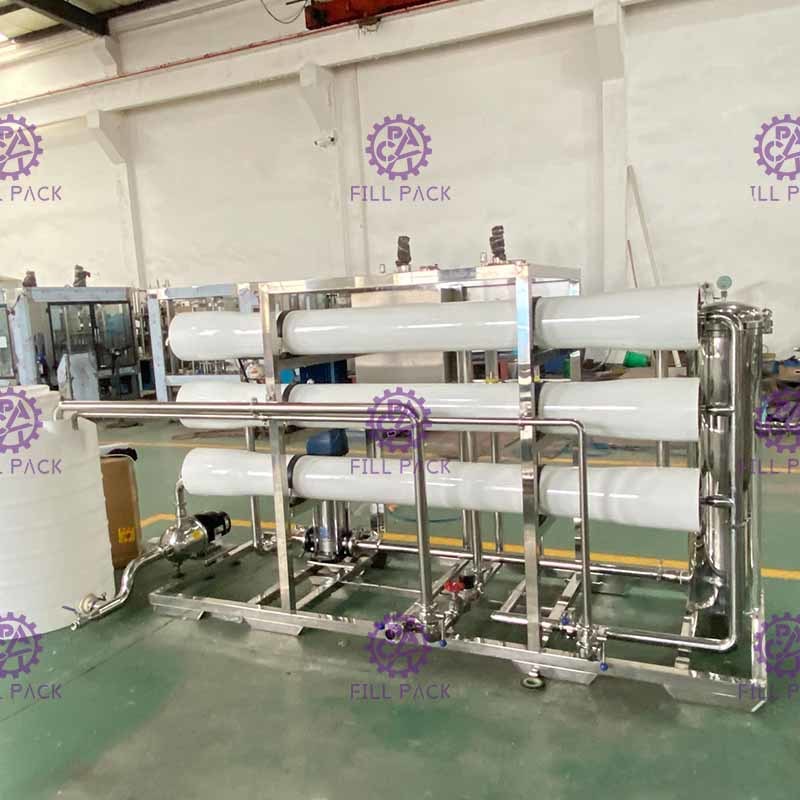

RO(reverse osmosis) system
|
remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
|
USA Filmtec Dow
|
|
8
|
UV sterilizer
|
kill bacteria in pure water
|
Optional
|
Specifications of 10TPH RO Water Filtration System:
| Model | RO-10000L |
| Production capacity | 10000L/Hr(can be customized) |
| 6Power | 6.0Kw |
| Power supply | 3P 380V 50Hz |
| Reverse osmosis (RO)membrane | USA DOW/VONTRON |
| Membrane | 8040 |
| Raw water pump | CNP |
| Security filter | 5um PP filter |
| High pressure pump | CNP |

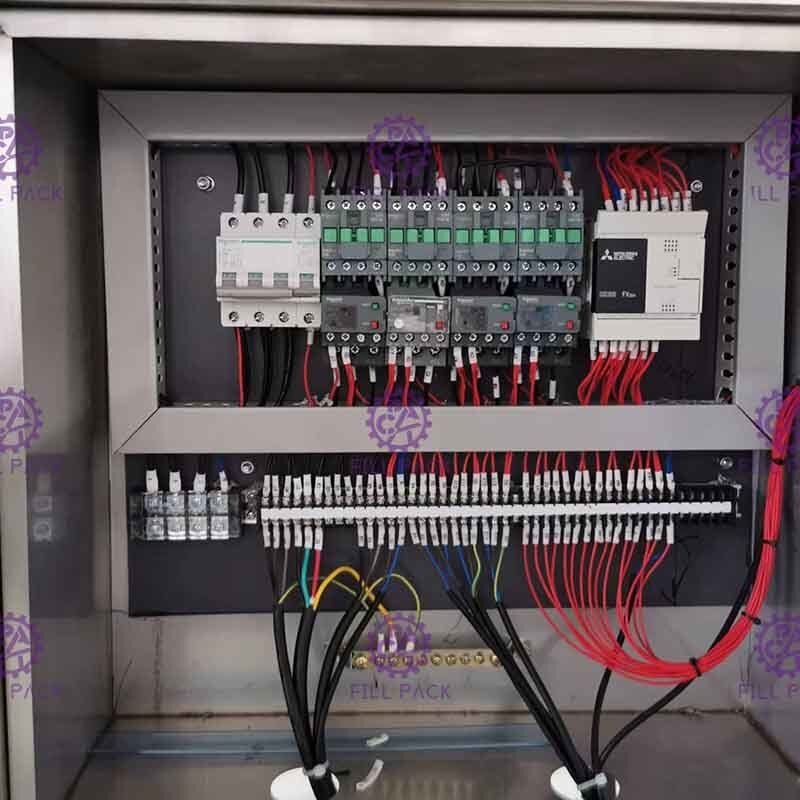

PLC Control Panel Image:
