3 Heads Automatic Bucket Decapping Machine 1500bph

Product Description

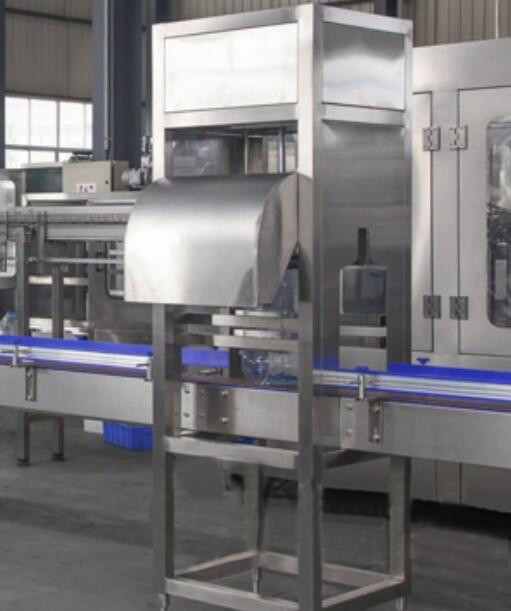

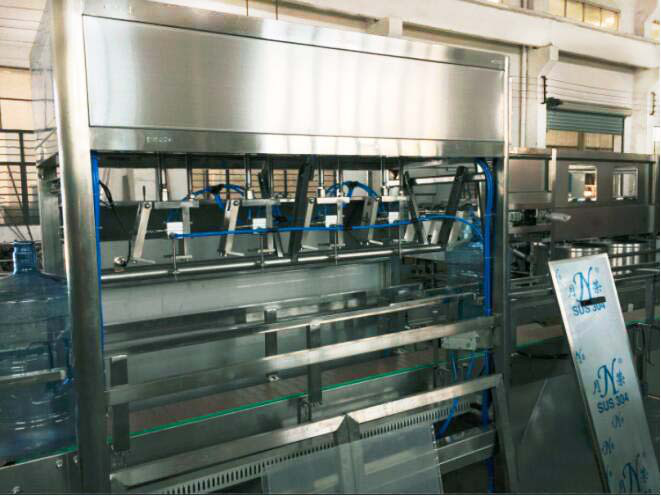

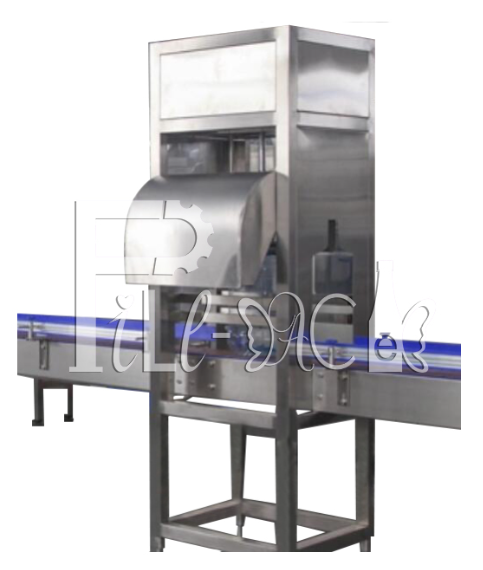

The Automatic de-capping machine with 3 heads

This machine is driven by cylinder, controlled by PLC;

Automatic working by barrel checking;

The machine has 3 de-capping heads. De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.

When the gallon bottle comes into the machine, the de-capping head will go down and claw device will hold tightly barrel cap sides, and then lift the barrel to take off the caps; And when the caps are taken off, the compressor air will blow the caps into cap hopper, then fall outside into client’s own holder;

The claw pressure is adjusted to protect caps;

De-capping head: 3 heads

Dimension: 1200*500*2100 mm

Air consumption: 0.1M³/min

Air pressure: 0.6Mpa

Pneumatic brand: Airtac

Weight: 180kg
