120BPH 5 Gallon 18.9L Drink Water Mineral Water Filling Machine Bottled Water Filling Production Line

Product Description

120BPH 5 Gallon 18.9L Drink Water Mineral Water Filling Machine Bottled Water Filling Production Line

1. The machine is integrated washing filling and capping together.

2. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily.

3. Main electric parts are all branded. Air channel system use Air TAC brand product.

4. The machine is with compact construction, will occupy small room, working efficiency is high.

5. Only need 2 operators to control, is a good choice for factory to choose.

The machine set up do not need plug floor screw,after case taking off,set the machine on the flat floor,and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power,air power.

Parameters:

Model	QGF-120	QGF-200	QGF-300	QGF-450
Filling heads	1	2	2	3
Volume	3-5 gallon
Barrel size	Φ270*490mm
Capacity	120BPH	200BPH	300BPH	400BPH
Air press(Mpa)	0.37	0.37	0.6	0.8
Power supply	1.38KW	2.5KW	5.3KW	5.6KW
Dimension	3400*780*1950mm	3400*780*1950mm	3400*1000*1750mm	5000*2000*1800mm
Weight	400KG	500KG	700KG	1000KG



Detailed Images:

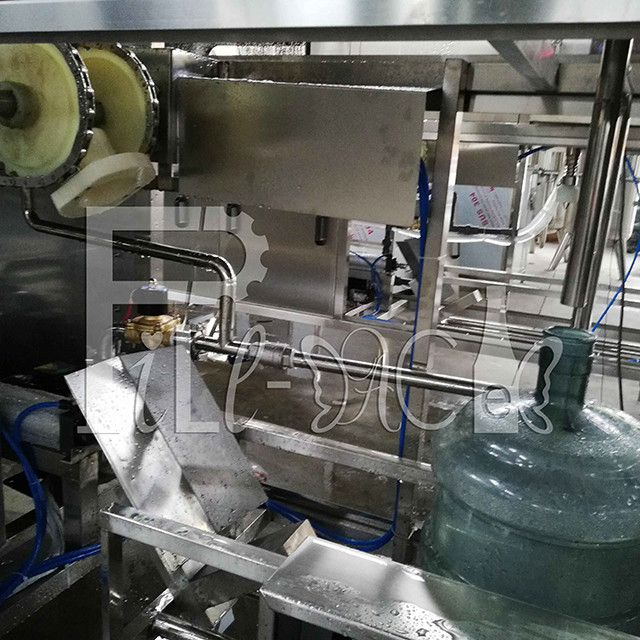

Washing heads

Washing process will be divided into 3 steps:

1, thimerosal washing;

2, clean water washing;

3,pure water washing.

Every washing step is set to 8S,after washing,there will be 10S for dripping.

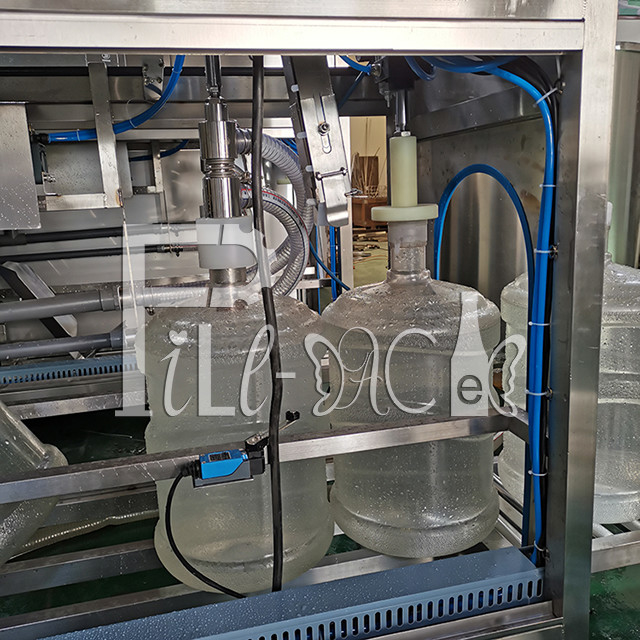

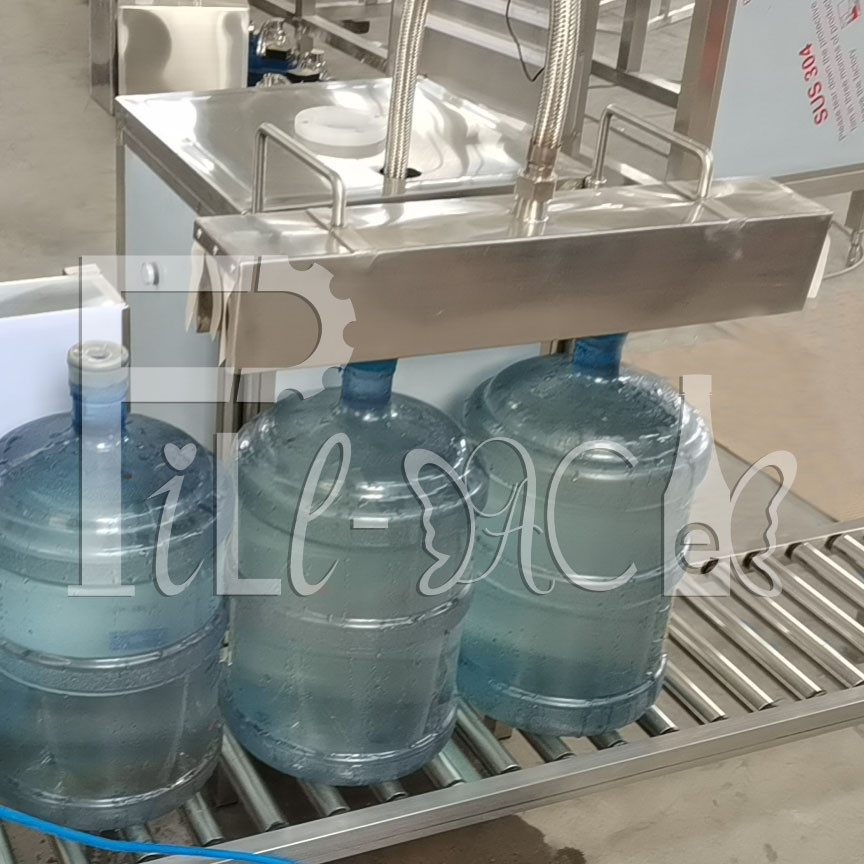

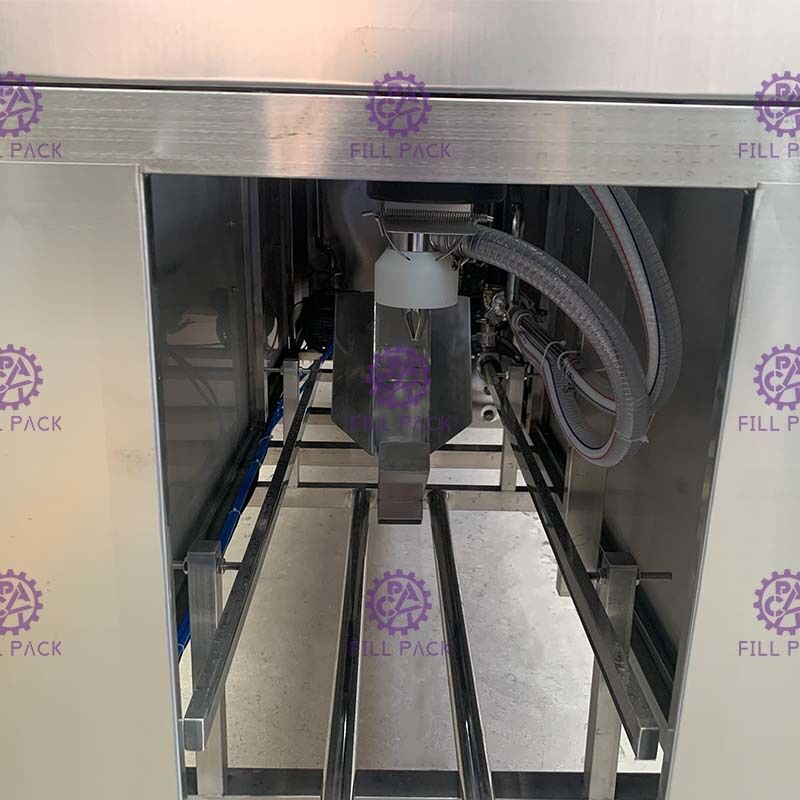

Filling and capping

Filling value will driven by cylinder to insert into barrel and start to fill, filling time is controlled by PLC, and filling time is adjustable by control panel according to filling liquid surface.

After filling process finish, the filled barrel will be pushed to capping position by barrel stop cylinder, the whole process finish till now.
