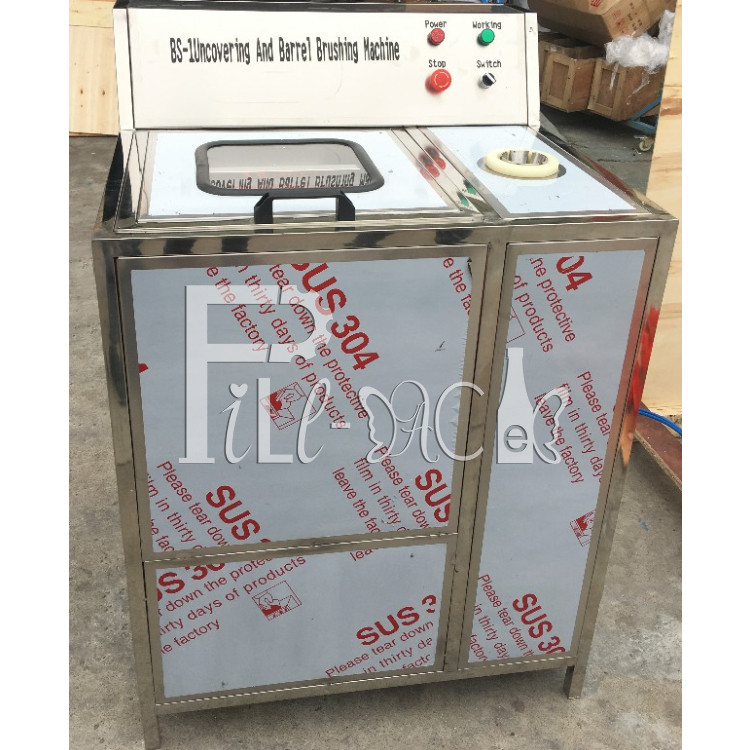

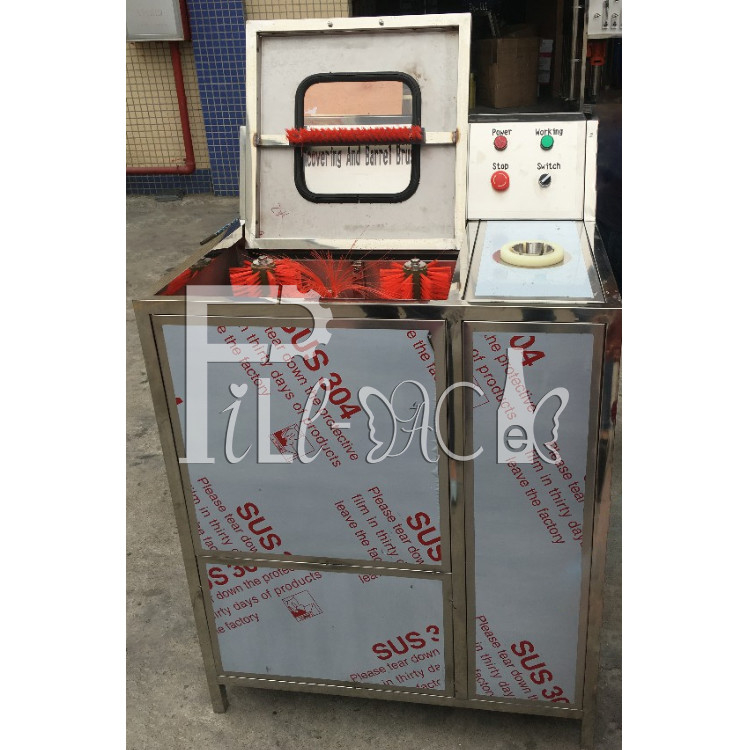

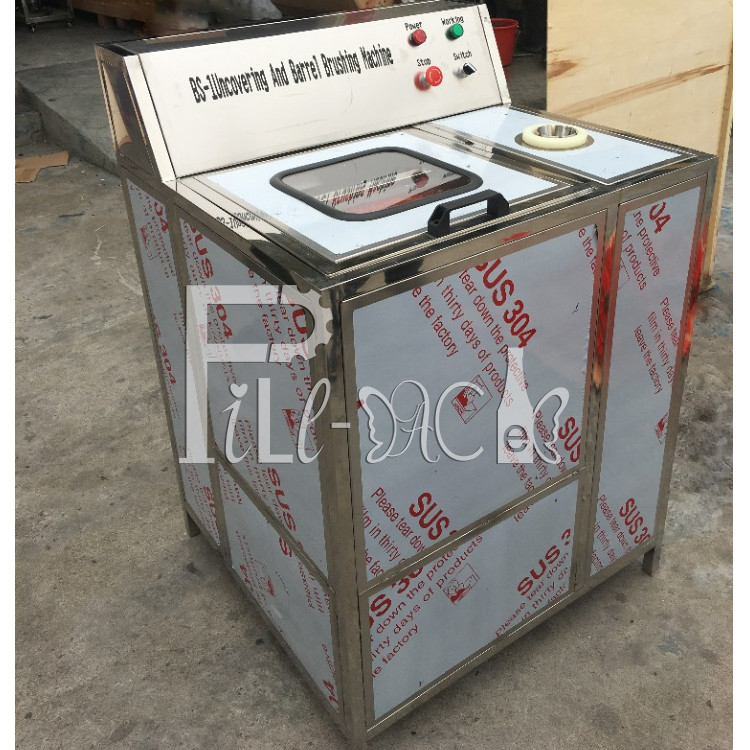

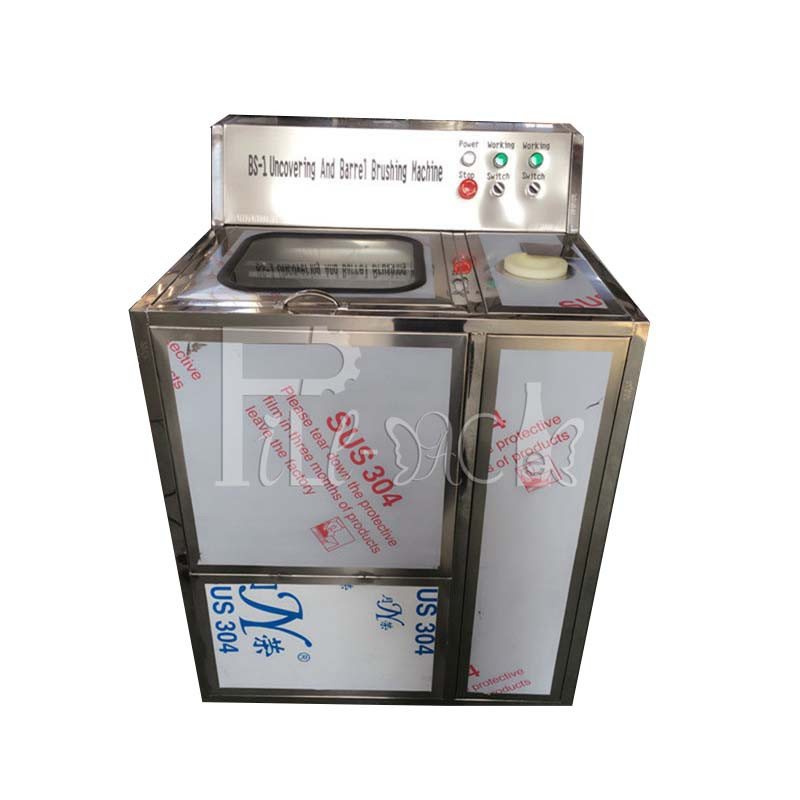

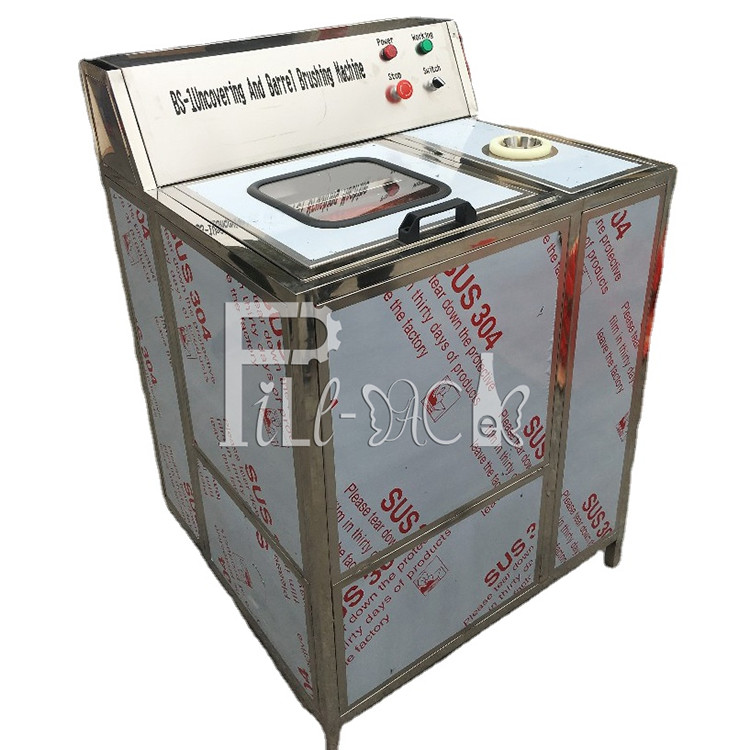

5 Gallon Semi Auto Bottle Rinser Washer Manual Feed Single Station With Full SUS304

3-5 Gallon Semi-Auto Brush Washer Manual Feed Single Station With Full SUS304

Overview:

The washing machine is an indispensable equipment in the empty barrel pretreatment process of the drinking water production line, and it usually works with the air compressor. In order to adapt to the needs of most mineral water plants and pure water plants, the cumbersome empty barrel processing technology has become simple automation. Our company introduces and absorbs the advanced technology of brushing barrels at home and abroad, and combines the actual situation of existing manufacturers with the management regulations of drinking water industry to develop the BS-1 5 gallon barrel brushing machine. The device integrates the bottle cap and cleans the inside and outside of the barrel, and has reliable performance, simple operation and convenient maintenance.

Work process:

Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed. Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client's needing.

Parameters:

Details:
