2L Plastic Mineral Water Bottling Filling Machine Line Adhesive Labeling With Code Printer

Product Description

Semi-Automatic 0-2L Plastic Mineral Water Bottling Filling Machine Line And Adhesive Labeling Machine With Code Printer

Description:

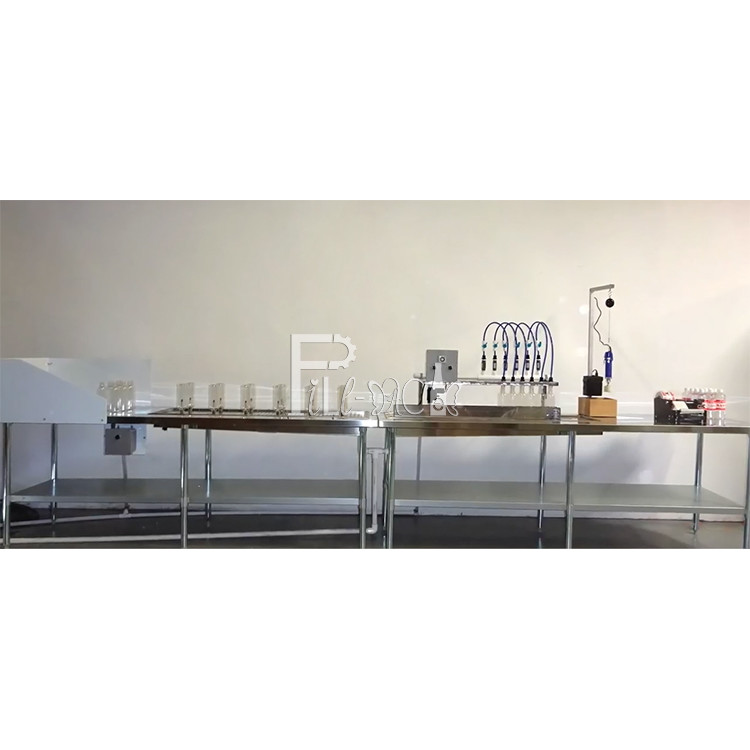

The semi-automatic bottled water production line is stable and reliable, easy to operate and maintain, and has a low failure rate. It is an ideal full-filling production line for small and medium-sized water enterprises, and it is very economical to start up for the first time. The entire bottling production line includes bottle rinsing, water filling, capping, and labeling.

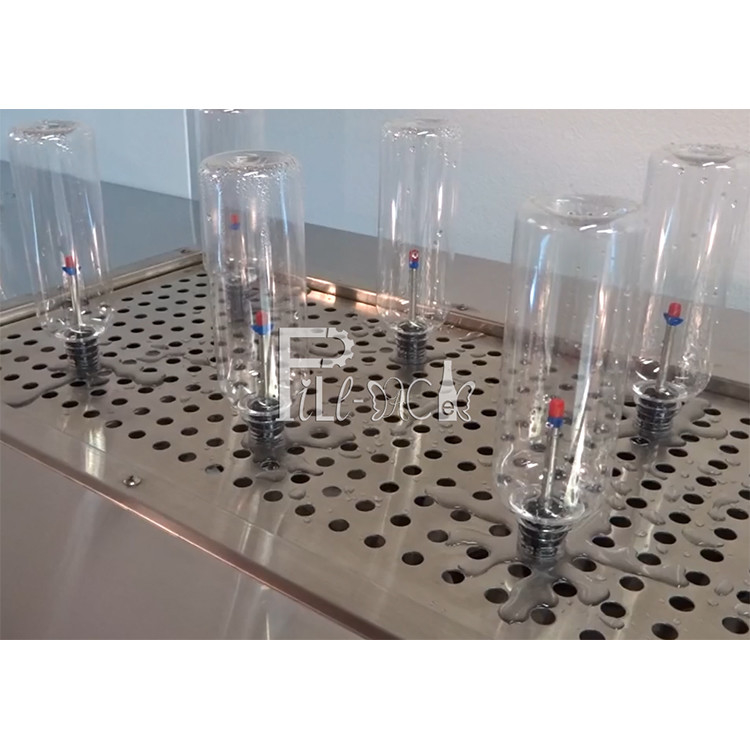

1.Semi-auto bottle rinser

Principle:

The machine is a semi-automatic liquid filling container plastic bottle cleaning equipment, widely used in drinking water,juice drinks production unit cleaning plastic bottle container.In small beverage production unit is particularly applicable: After putting the bottle in place, press the button to wash the bottle with water, scrubbing action is completed automatically, and all by manual cleaning compared,Work efficiency can be improved by about many times.This machine adopts continuously spraying method to wash bottles. This machine is suitable for different sizes of bottle.The washing system has the water recycle and filtering device. machine material is made of stainless 304.

Working process:

Workers insert bottles into rinsing positions downside up, water will be generated into bottle bottom height to flush dirty outside; There is water inlet and water discharge hole in the machine.

Parameters:

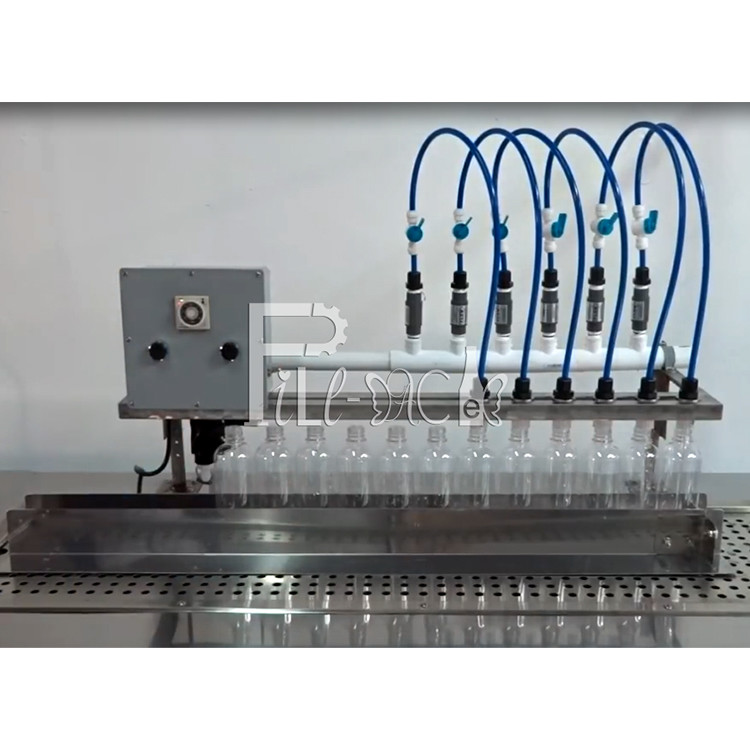

2.6 head filling machine

Principle:

The filling machine can production line is a widely used automatic liquid filling machine, which can accurately fill non-gas drinks such as wine, juice, coffee, oil, water etc., and can also be filled with vinegar, milk, pesticide and other liquids. Suitable for PET bottles of various sizes, Equipment is a customized product, can be customized according to the samples of different customers.

Characteristics:

1. After manually placing the bottle, manually press the button, the filling pump starts filling；

2. When the water is about to be filled, manually press the custom button to stop filling；

3.The contact part of the material is made of 304 stainless steel；

4.The machine is simple in composition and easy to install.

Main technique data:

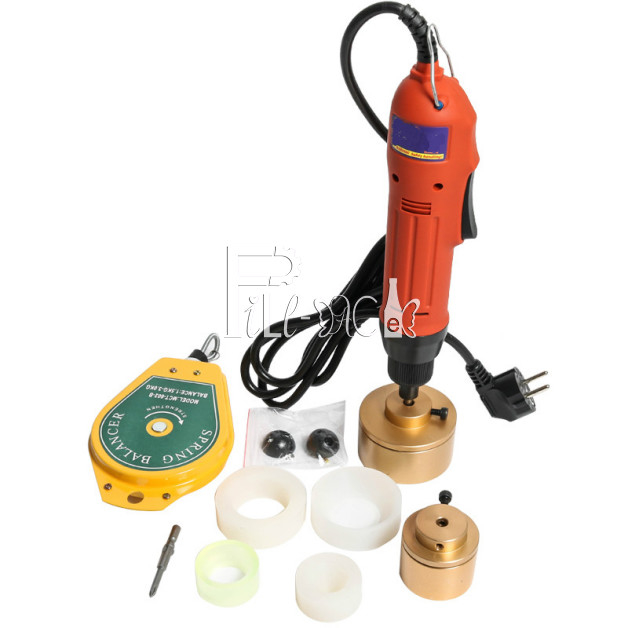

3.Capping machine

Principle:

The hand-held electric capping machine is mainly used for unscrewing or tightening various screw caps, such as plastic bottles, glass bottles, daily chemical bottles, medicine bottles, etc. The machine is easy to carry and can be easily used to tighten or loosen various bottle caps. Its adjustable clutch (adjustment strength) can effectively avoid the damage of the bottle cap and reduce the wear of the inner plug. Once the cap is tightened, the chuck will automatically stop rotating, indicating that you can move on to the next cap. The whole machine includes: main engine, aluminum screw cap and buffer inner plug.

Machine including: host, aluminum capping card inside the plug head and a buffer.

This machine can be used alone or in combination with a filling machine. It is an ideal equipment for mass production in food, medicine, pesticide, chemical and daily chemical industries. It has a wide range of capping and capping is not affected by the height, shape, size and weight of the bottle. It is an ideal tool for screw cap screwing due to the characteristics of convenient operation, low failure rate and low price. It is especially suitable for use in cases where the bottle is tall, large, heavy, or the bottle has a strange shape, or the cap has many specifications, and the screw cap needs to be replaced frequently.

It can be suitable for different diameter cap by changing capping head.

Four pieces aluminum capping head: 10-20mm, 20-30mm, 30-40mm, 40-50mm.

The rubber band is a wearing part, about 3,000 bottles need to be replaced, and the capping head generally does not need to be replaced.

Parameters:

Model: BX-50

Capacity: 10-30 bottles per min

Applicable cap type:Plastic cap, aluminum cap

Applicable cap diameter: φ10-φ50mm

Power: 80W

Dimension: 70*70*300mm

Weight: 1.5kg

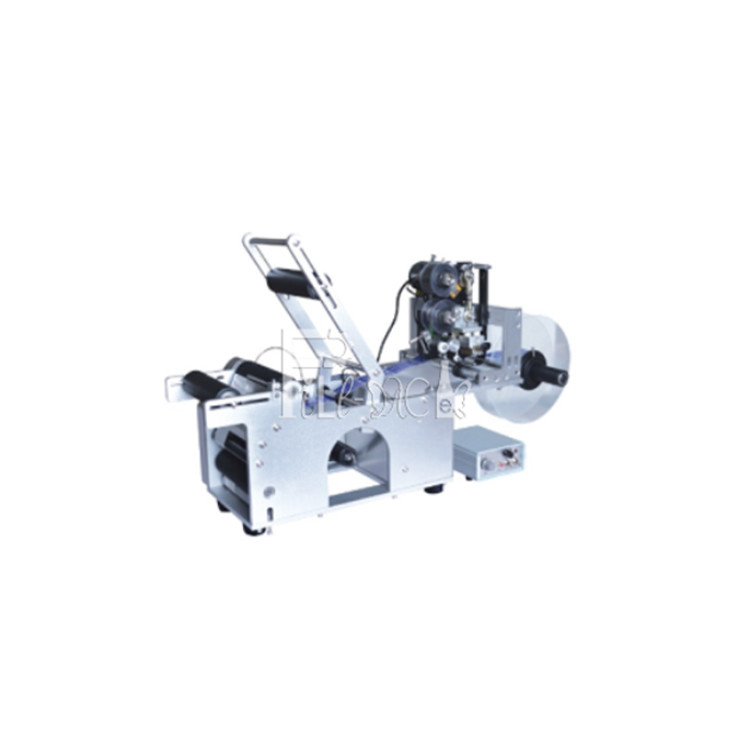

4.Semi-auto adhesive labeling machine for round bottles with code printer

Descriptions:

Principle:

Worker load bottles manually on bottle loading position, then press labeling rack down to bottle surface, then labeling roll will rotate and leave the label to bottle surface, labeling, pressing can be done at the same time; High labeling quality, no bubble, no decline; Machine have a range to be adjusted for different size bottle.

Characters:

Applicable for glass bottle and PET bottles in round shape. Machine need special order if the bottle is in particular shapes

Parameters:
